Mould & Pattern Capability
All tooling is built to the customer’s own drawing, sample or 3D scan. We design and cut the mould; the geometry stays yours.

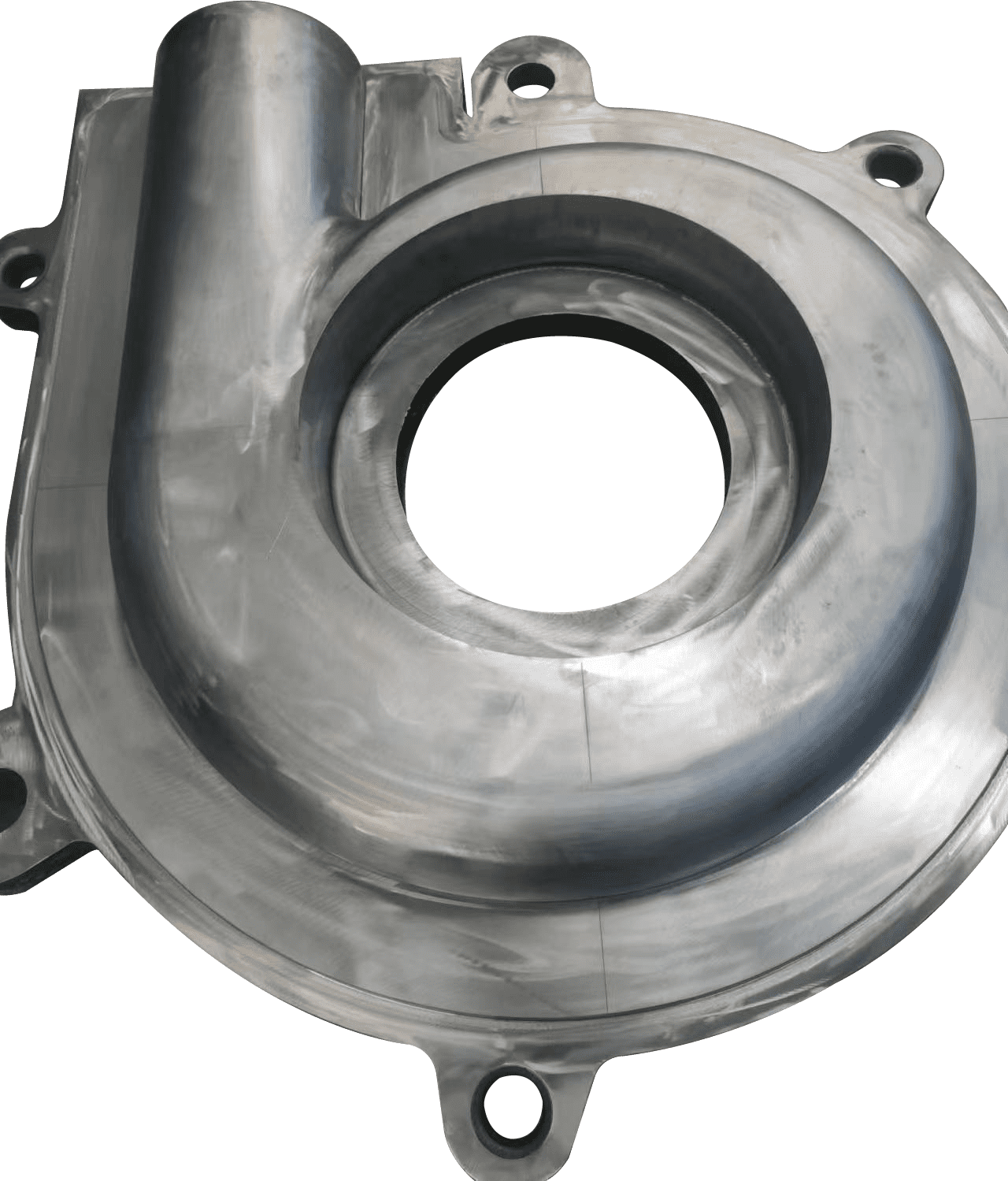

Rubber Moulds
High-durability moulds for rubber-lined pump bodies, impellers, casings, and wear-resistant components. Designed for abrasive slurry environments with long service life.
- Applications Slurry pump bodies, impellers, casings
- Materials Natural / NBR / EPDM / SBR
- Max Size Up to 2,000 × 1,500 mm
- Tolerance ±0.3 mm

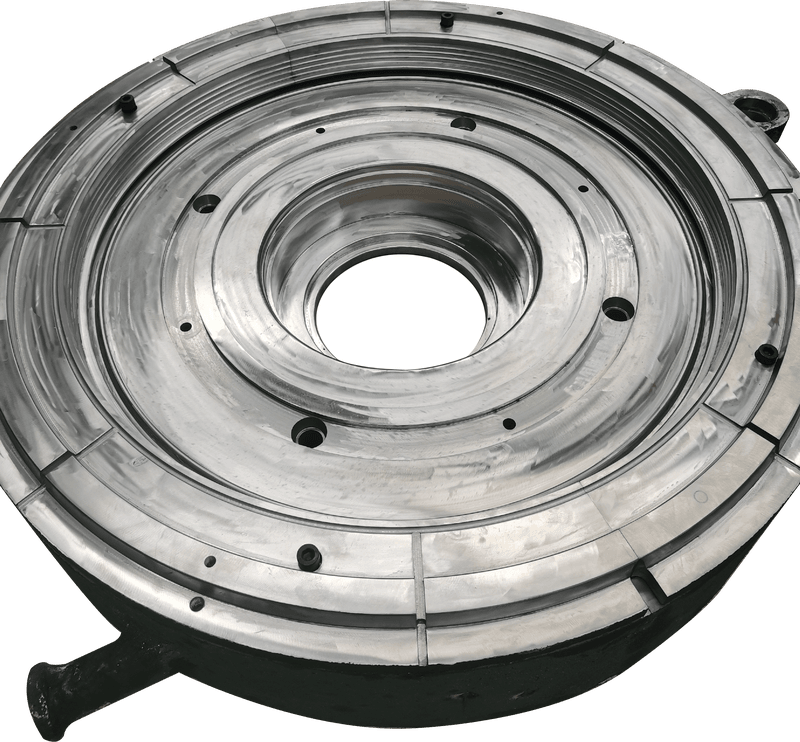

Polyurethane (PU) Moulds
Precision moulds for front liners, pump covers, cyclones, and mining wear parts. Superior abrasion resistance with complex geometry capability for polyurethane casting.
- Applications Front liners, cyclones, pump covers
- Materials PU elastomer, castable urethane
- Hardness Range 60A – 95 Shore D
- Max Size Up to 1,800 × 1,200 mm

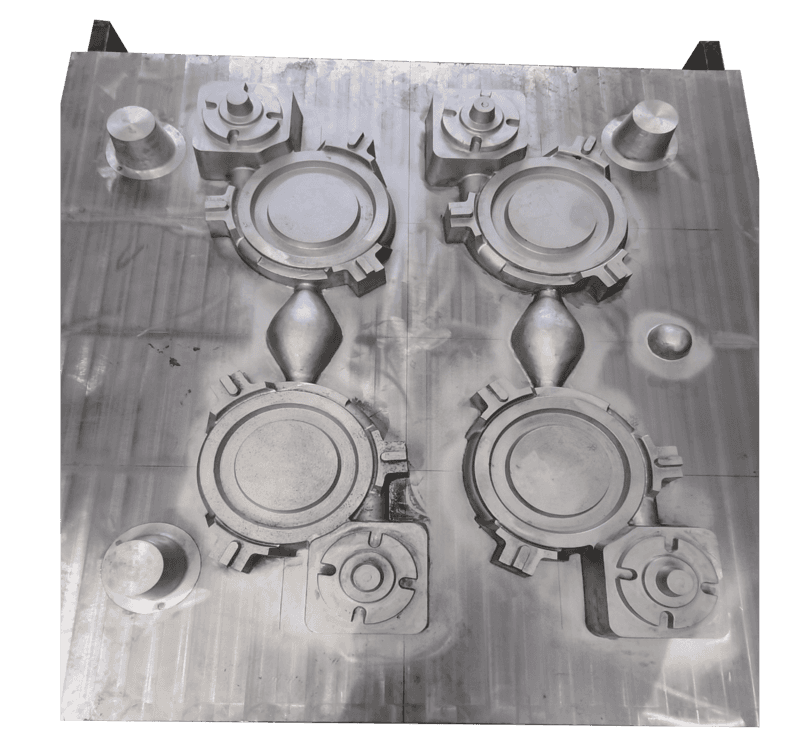

Metal Casting Moulds
Casting tooling and patterns for high-chrome iron, alloy steel and cast iron pump bodies, impellers and industrial components. Built for high-volume production with consistent dimensional accuracy.
- Applications Hi-Chrome impellers, pump casings
- Casting Types Resin sand, lost foam, shell (croning)
- Workpiece Capacity Up to 30 t machined, 35 t crane
- CNC Finish 4m × 6m gantry capacity

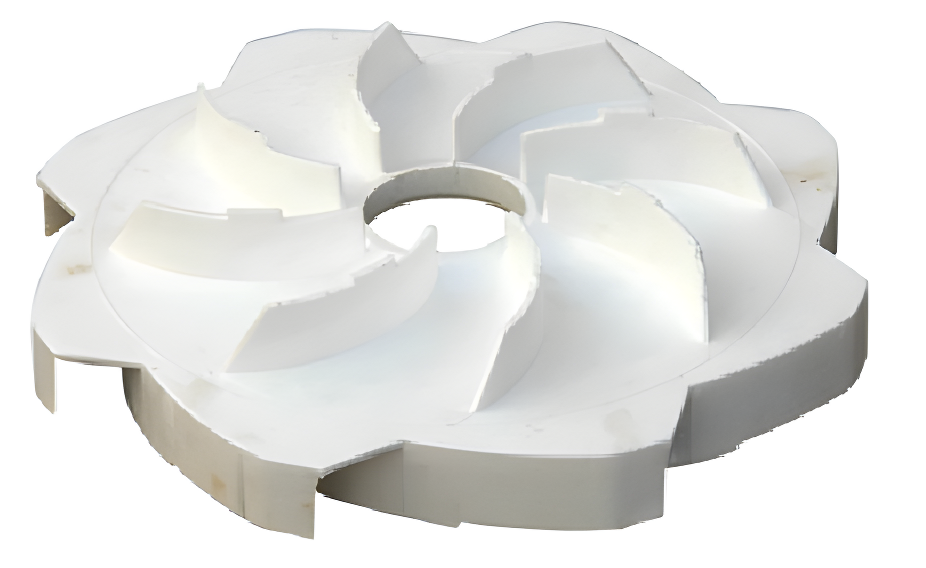

Lost Foam Patterns
Cost-effective expandable polystyrene (EPS) patterns for prototype development and small-batch production. Ideal for complex geometries and rapid iteration.
- Applications Prototypes, small-batch castings
- Pattern Material EPS / expandable foam
- Lead Time 5 – 10 days typical
- MOQ 1 piece acceptable

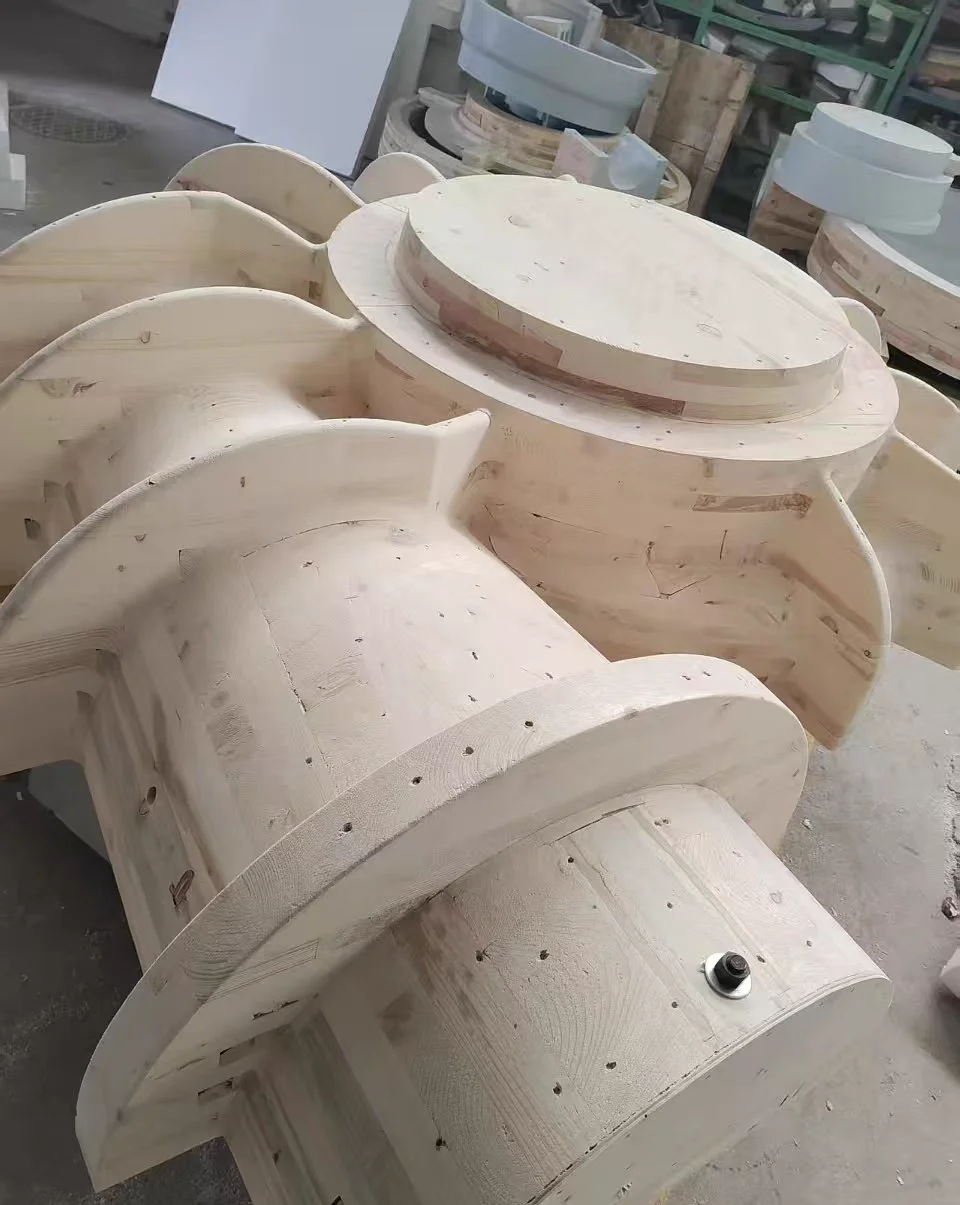

Wooden Patterns
Traditional wooden patterns for sand casting, ideal for large one-off castings and verification before committing to permanent metal or resin moulds.
- Applications Large castings, verification patterns
- Wood Types Pine, hardwood, laminated boards
- Max Size Up to 3,000 × 2,500 mm
- Finish CNC + hand-finished
